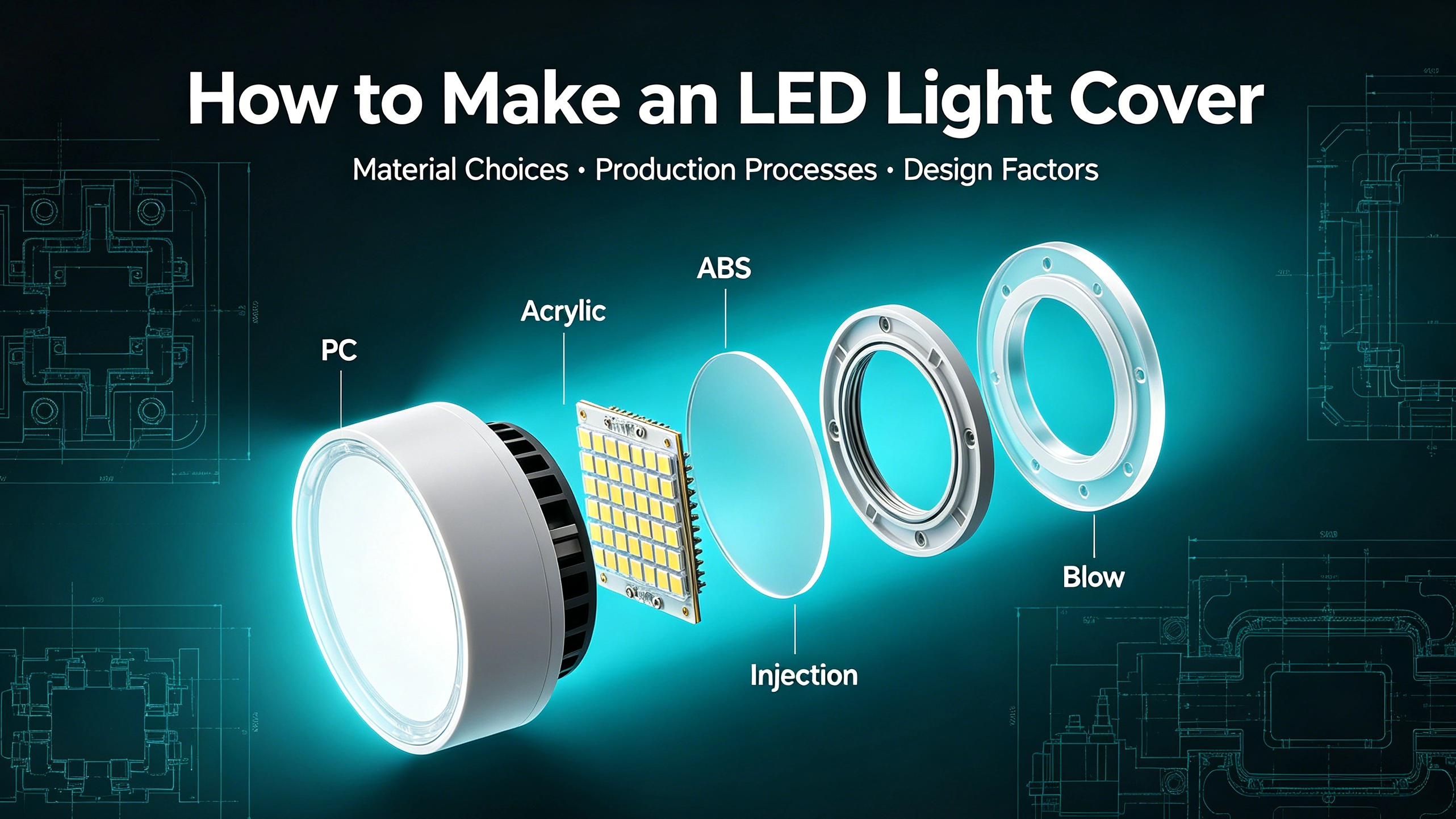

To make an LED light cover, manufacturers most often use plastic injection molding. Polycarbonate (PC) pellets are melted, injected into a precise mold, cooled, and ejected as a finished cover. For hollow or rounded shapes, blow molding is used instead. The right process depends on the cover's shape, transparency needs, and order volume.
An LED light cover does more than hide the bulb. It diffuses harsh light into a soft, even glow, protects the LED from dust and moisture, and gives the fixture its finished look. Whether you're designing a ceiling light cover for an office or a waterproof globe for a courtyard, the manufacturing method you choose shapes the final result.
This guide breaks down how LED light covers are made, which materials work best, and how to pick the right production process. You'll also find a side-by-side comparison of the main molding methods, plus answers to the questions buyers ask most.
Most modern LED light covers are made from polycarbonate (PC), a clear, impact-resistant plastic. PC handles heat well, resists yellowing, and offers high light transmission—qualities that matter when you're covering an LED that runs for thousands of hours.
Some designs use acrylic (PMMA) for extra clarity, or ABS for opaque, structural parts of a fixture. Heshan Zhongsheng, a China-based plastic manufacturer, produces PC lampshades for ceiling fans, office panel lamps, and outdoor spherical landscape lights, with diameters ranging from compact 65mm caps to 150mm waterproof balls.
The material choice affects everything downstream:
PC (polycarbonate): High transparency, strong impact resistance, good for both indoor and outdoor covers.
Acrylic: Excellent clarity, often used in decorative or premium fixtures.
ABS: Durable and opaque, suited to housings and frames rather than the light-emitting surface.
There are three main ways to shape an LED light cover. Each suits a different geometry and production scale.
Plastic injection molding is the most common method for LED light covers. Molten PC is injected under pressure into a steel mold, where it cools into a precise, repeatable shape. This process delivers tight tolerances and a smooth finish—ideal for flat panels, downlight caps, and ceiling light covers. Heshan Zhongsheng uses injection molding to produce its PC transparent lampshades and anti-glare office panel plates.
The injection blow molding process combines two steps. First, a hollow "preform" is injection molded. Then air is blown into that preform inside a second mold, expanding it into the final shape. This method works well for hollow, rounded covers that need a seamless, enclosed form.
The injection stretch blow molding process adds a stretching stage. The preform is stretched lengthwise as air inflates it, which aligns the plastic molecules for greater strength and clarity. This is the go-to method for larger spherical lampshades, such as the waterproof ball covers used on courtyard fences and outdoor columns.
The best process depends on your cover's shape, the volume you need, and how clear it must be. The table below compares the three main methods.
Process | Best for | Cover shape | Strengths | Typical use |
|---|---|---|---|---|
Plastic injection molding | High-volume flat or shallow parts | Panels, caps, ceiling covers | Tight tolerances, smooth finish, fast cycles | Office panel lamps, downlight covers |
Injection blow molding | Small to medium hollow parts | Rounded, enclosed shapes | Seamless hollow forms, even walls | Bottles, small globe covers |
Injection stretch blow molding | Larger hollow parts needing strength | Spheres, large globes | Higher strength and clarity | Outdoor spherical landscape lampshades |
Choose injection molding if you need flat or shallow covers in large quantities with precise dimensions. Choose injection blow molding if your design is hollow and mid-sized. Choose injection stretch blow molding if you need a large, strong, clear sphere—such as an outdoor waterproof globe.
A good PC lampshade design balances looks with function. Keep these factors in mind:
Light diffusion: A frosted or textured surface spreads light evenly and reduces glare. Anti-glare panel plates, like Heshan Zhongsheng's 16×20 office lamp cover, are built specifically for uniform light.
Transparency vs. softness: High-transparency PC maximizes brightness, while a diffused finish creates a gentler glow.
Weather resistance: Outdoor covers, such as acrylic waterproof ball lampshades, need UV stability and a sealed shape to keep moisture out.
Fit and mounting: The cover must match the fixture's dimensions precisely—a job injection molding handles well.
Shape: Circular lampshades suit ceiling and downlight fixtures, while spheres work for landscape and column lighting.
For a one-off DIY project, you can shape thin acrylic or PC sheets by hand, or repurpose a diffuser. But these methods rarely match the finish, durability, or consistency of molded covers.
For any real volume—retail, commercial, or wholesale—working with a blow molding manufacturer or injection molder is the practical route. A China-based LED light cover supplier like Heshan Zhongsheng offers customization across materials, sizes, and finishes, plus the tooling needed for consistent results at scale.
Making an LED light cover comes down to two decisions: the right material and the right process. Polycarbonate covers most needs, while your choice between injection molding and blow molding depends on whether your cover is flat or hollow, small or large, standard or custom.
If you're planning a production run, start by defining your shape, size, and transparency goals. From there, a specialist manufacturer can recommend the molding method that fits your budget and timeline. To explore custom PC lampshades, circular covers, and outdoor globe options, reach out to a dedicated LED light cover producer and request a sample.
What is the best material for an LED light cover?
Polycarbonate (PC) is the most popular choice. It combines high light transmission, strong impact resistance, and heat tolerance, making it suitable for both indoor and outdoor LED covers.
What is the difference between injection molding and blow molding?
Injection molding forces molten plastic into a solid mold to create flat or shallow parts. Blow molding inflates a heated preform with air to create hollow shapes like globes and rounded covers.
Can LED light covers be used outdoors?
Yes. Outdoor covers, such as acrylic or PC waterproof ball lampshades, are designed with UV resistance and sealed shapes to withstand rain, sun, and dust on courtyards, corridors, and squares.
How do I reduce glare from an LED light cover?
Use a cover with a frosted or anti-glare surface. Anti-glare uniform light plates diffuse the LED output evenly, which softens brightness and reduces eye strain in offices and homes.
Can I order custom LED light covers?
Yes. Manufacturers such as Heshan Zhongsheng offer customized sizes, shapes, materials, and finishes, with both injection and blow molding available depending on the cover's design.
