How to use injection blow molding for safer pharmaceutical bottles

The injection blow molding process is the standard manufacturing method for pharmaceutical plastic bottles. It combines plastic injection molding and blow molding to create seamless, high-precision bottle containers. This method ensures empty plastic bottles meet strict medical safety standards, offering superior barrier protection and exact neck finishes for tamper-evident seals.

Selecting the right packaging for pharmaceutical products is a critical responsibility. A minor defect in a medical bottle container can compromise the efficacy of life-saving medicine. For manufacturers and distributors, the priority is finding a production method that guarantees absolute precision, sterility, and consistency.

The injection blow molding process delivers exactly this level of reliability. By merging the exactness of injection molding with the hollow-forming capabilities of blow molding, manufacturers can produce flawless plastic bottles at scale. This method eliminates the bottom seams found in other molding techniques, drastically reducing the risk of leaks and contamination.

Understanding how this process works can help procurement managers make better sourcing decisions. Whether you need a simple plastic bottle container for over-the-counter vitamins or specialized sks bottle and packaging solutions for prescription drugs, the manufacturing foundation determines the final quality. This guide explains the mechanics of the process, material selection criteria, and how to source the best containers for your specific pharmaceutical needs.

How does the injection blow molding process work?

The injection blow molding process is a three-step manufacturing technique designed to produce hollow plastic objects in large quantities. The process relies on a core injection molding machine equipped with specialized tooling.

First, the machine melts polymer resin and injects it into a steel mold cavity to form a "preform." This preform looks like a small test tube with a fully formed, precise neck and threads. Because the neck is created during the initial plastic injection molding phase, it features exact dimensions. This precision is vital for pharmaceutical bottle containers, as it ensures child-resistant and tamper-evident caps fit perfectly.

Next, a core rod transfers the hot preform into a secondary blow mold cavity. Compressed air inflates the malleable plastic, pushing it against the cold walls of the mold to form the final shape of the bottle container. Finally, the machine transfers the cooled, solid bottle to the ejection station, where it drops the finished product onto a conveyor belt.

This seamless transition between injection and blowing produces empty plastic bottles with uniform wall thickness and zero scrap material, making it an incredibly efficient process for medical-grade packaging.

Why choose injection blow molding over extrusion molding?

When sourcing pharmaceutical packaging, buyers often weigh injection blow molding against extrusion blow molding. You should choose the injection blow molding process if absolute precision in the neck finish and a seamless body matter more than the ability to create containers with handles.

Extrusion blow molding leaves a pinch-off seam at the base of the bottle. In the pharmaceutical industry, this seam presents a structural weakness and a potential breeding ground for bacteria. Injection blow molded containers lack this seam. They offer superior structural integrity, better visual clarity, and highly accurate thread dimensions that prevent liquid medication leaks.

Which materials are best for pharmaceutical bottle containers?

Selecting the right resin is just as important as the manufacturing process itself. The two most common materials used for pharmaceutical plastic bottles are Polyethylene Terephthalate (PET) and High-Density Polyethylene (HDPE).

Choose PET if optical clarity and gas barrier properties matter most for your product. PET is highly transparent, making it ideal for liquid medications where the consumer needs to see the contents. Alternatively, choose HDPE if you require excellent moisture barriers and high impact resistance for solid pills or light-sensitive liquids.

Here is a comparison of these common materials used in the injection blow molding process:

How do China bottle container manufacturers utilize this technology?

The global supply chain heavily relies on specialized manufacturers to meet the massive demand for medical and household packaging. A China bottle container supplier typically utilizes advanced plastic injection molding systems to produce a massive variety of packaging solutions.

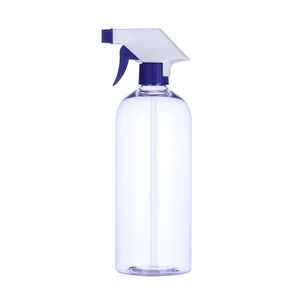

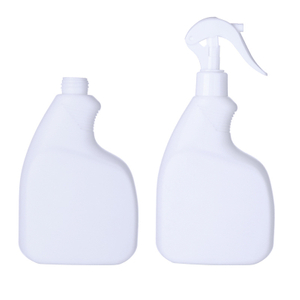

For instance, manufacturers like Heshan Zhongsheng Plastic Products leverage these processes to produce highly durable China Plastic Bottles for both daily chemical and specialized industries. Their product lines showcase the versatility of the molding process. They manufacture everything from 200ml clear PET trigger spray bottles used for disinfectants to robust 300ml and 500ml pump bottles for liquid soaps and sanitizers.

While everyday items like a household plastic bottle container differ slightly from strict pharmaceutical packaging, the underlying technology is identical. The same machinery that produces an airtight, 500ml HDPE pump bottle for commercial sanitizers can be calibrated with medical-grade molds to produce sterile pill packers. By partnering with a reputable China bottle container manufacturer, pharmaceutical companies can source high volumes of empty plastic bottles efficiently while maintaining strict quality control.

What are the next steps for sourcing your plastic bottle container?

Securing the right packaging requires a clear understanding of your product's chemical properties and regulatory requirements. Now that you understand how the injection blow molding process guarantees precise, seamless bottle containers, you can audit your current packaging lineup.

Start by evaluating your existing empty plastic bottles for consistency in wall thickness and cap fitment. If you notice leaking caps or fragile bases, it may be time to transition to injection blow molded containers. Reach out to a specialized packaging consultant or a certified manufacturer to discuss custom mold designs that fit your specific pharmaceutical applications.

Frequently asked questions about bottle containers

What is the difference between plastic injection molding and blow molding?

Plastic injection molding injects molten plastic into a solid mold to create solid parts like bottle caps and closures. Blow molding uses compressed air to inflate hot plastic inside a mold cavity to create hollow items like bottle containers. The injection blow molding process combines both methods to create a precise neck and a hollow body.

Are China Plastic Bottles safe for pharmaceutical use?

Yes, provided the China bottle container manufacturer holds the appropriate medical packaging certifications (such as ISO 13485 or FDA compliance) and uses medical-grade, virgin resins. Many top-tier global pharmaceutical brands source their empty plastic bottles from certified facilities in China.

How much does tooling cost for a custom plastic bottle container?

Tooling costs for the injection blow molding process range from $10,000 to $30,000 depending on the complexity of the bottle and the number of cavities in the mold. You should choose custom tooling if your product requires a unique shape for branding or highly specific tamper-evident neck dimensions.

Can PET and HDPE empty plastic bottles be recycled?

Yes, both PET and HDPE bottle containers are highly recyclable. PET is widely recycled globally (Resin Identification Code 1), while HDPE (Resin Identification Code 2) is frequently repurposed into new industrial products, making both choices environmentally responsible for pharmaceutical companies.
